CLAAS wheel loader | TORION 738 T SINUS telescopic wheel loader.
How you benefit:
- Telescopic arm with integrated Z-kinematics: The 4.96-m bucket pivot point delivers impressive unloading heights
- Articulated steering and a steered rear axle: Work safely thanks to a highly stable machine that needs little space for turning
- High-flow hydraulic pump: Have your implements perform at their maximum
- SMART LOADING: Benefit from lifting and lowering height limiters, automatic bucket return and dynamic load limitation
- Economical engine: The 4-cylinder Yanmar engine with an output of 54 kW / 73 hp works efficiently and complies with the Stage V emission standard
- SMART SHIFTING ground drive: Thanks to an actively synchronised ground drive, you’ll reach a top speed of 40 km/h continuously

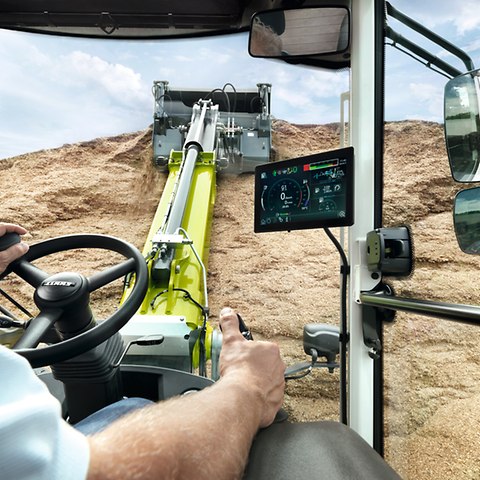

- Intelligent 9” touchscreen: Get information about all key parameters at a glance
- Generous comfort cab: Relaxed work with good all-round visibility
4.96 m with dynamic load limitation.
No other wheel loader stacks goods as high and as safely as the TORION 738 T SINUS. Its bucket pivot point is at an impressive 4.96 m. The hydraulic system lifts 2.3 t payload across the full lifting range. The dynamic load limitation automatically regulates the loading process whenever you move within the critical range.
Highlights.
SMART LOADING.
Active support for your work thanks to automated loading processes.
A 4.96-m bucket pivot point.
Greater unloading height combined with high stability.
SINUS steering.
A small turning radius and excellent stability thanks to articulated steering (30° on each side) and a steered rear axle (25° on each side).
SMART SHIFTING ground drive.
Continuous acceleration without losing traction at any point.
Specifications
| Operating weight1 (kg) | Tipping load fully articulated (max.)2 (kg) | Engine | Maximum engine power (ECE R 120) (kW/hp) | Hydraulic system l/bar |
| 7000 | 3800 | Yanmar 4TNV98CT | 52/71 | 93/230 |
1 The values shown vary according to tyres, earthmoving bucket (bucket capacity in accordance with ISO 7546, may be up to 10% more in practice, bucket filling level depends on type of material), kinematics variant, includes all lubricants, full fuel tank, ROPS/FOPS cab and driver. Tyre dimensions and supplementary equipment will affect the operating weight and tipping load.
2 According to ISO 14397-1.
