Technology.
Year-round operation.

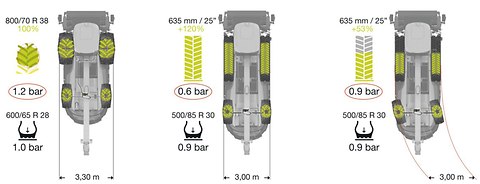

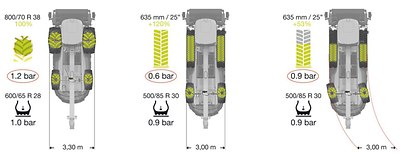

Compaction by harvesting machines reduces the pore spaces in the soil, resulting in oxygen deficiency, the risk of waterlogging and reduced soil micro-organisms. Subsequent crops suffer from impaired root growth, delayed development and reduced yield. The JAGUAR TERRA TRAC is ideally equipped to counteract these effects, its integrated headland protection system providing the greatest possible degree of soil protection when operating on grass and arable land.
No need for conversion.

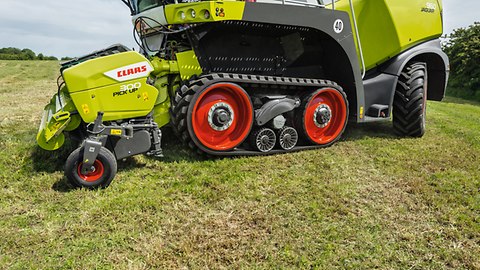

The new crawler track units allow the JAGUAR TERRA TRAC to be used on all surfaces throughout the year without the nuisance of time-consuming conversion between tracks and wheels. Excellent driving characteristics are another benefit of the combination of the crawler track system and a driven steering axle.
- Technical data
JAGUAR
960 Weight Front with 635 mm crawler track width kg 12400 Rear with 500/85 R30 steering axle tyres kg 5550 Overall without front attachment kg 17950 Length without front attachment to rear bumper mm 7690 with discharge spout extension M mm 7410 with discharge spout extension L mm 8060 with discharge spout extension XL mm 8810 Height (normal level) to cab mm 3835 to NR sensor mm 3990 Width at front with track width 635 mm mm 2990 with track width 735 mm mm 3350 with track width 890 mm mm 3490 Steering axle tyre width 500/85 R30 IMP 176/164 A8 mm 3000 620/70 R 30 178 A8 mm 3080 VF 620/70 R30 172 A8 MI mm 3080
