Press Release

High-horse-power tractor technology now also available for the ARION 400 model range

As of now, tractors in the CLAAS ARION 400 model range will be available with valuable technical solutions previously only available in CLAAS high-horse-power tractors.


These include the proven HEXASHIFT transmission, CSM headland management and TELEMATICS. The newly developed dynamic steering system is also available as an additional option for ARION 400 tractors.

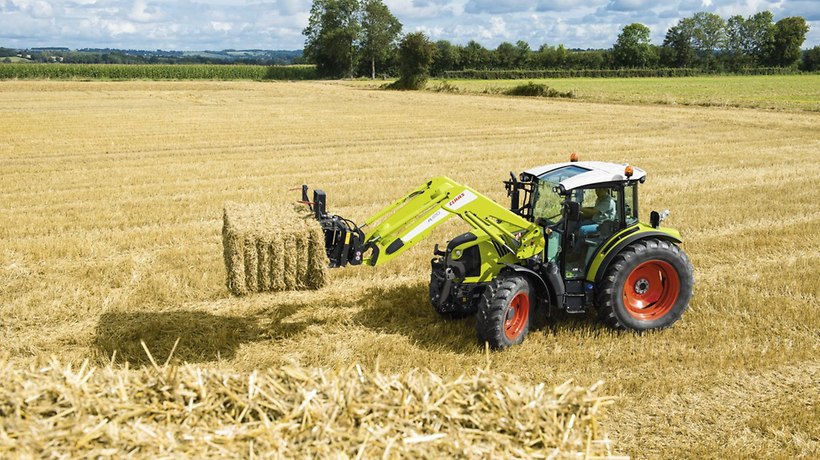

The ARION 400 models are ideal universal tractors for use with any operation thanks to their compact design and an engine range from 90 to 140 HP. With the expanded variety of configurations, farmers will now be able to undertake tasks such as soil cultivation, forage work, transport or using a front loader with even greater ease.

Optimised work solution with HEXASHIFT transmission and CSM headland management

Two transmission variants are now available for ARION 460 to 430 models: the existing QUADRISHIFT and now the HEXASHIFT transmission. The HEXASHIFT transmission can be used on the road at a lower engine rpm with four automated ranges and six power-shift stages. This means less driving noise for the driver and a lower diesel consumption. The six power-shift stages allow for a large gear overlap, so that the optimum rpm and driving speed can be selected for each application. All 24 gears can be conveniently changed using the multifunctional lever, without having to use the clutch pedal. The driver also has the option to completely leave the tractor to automatically change gear by selecting the HEXACTIV power-shift mode.

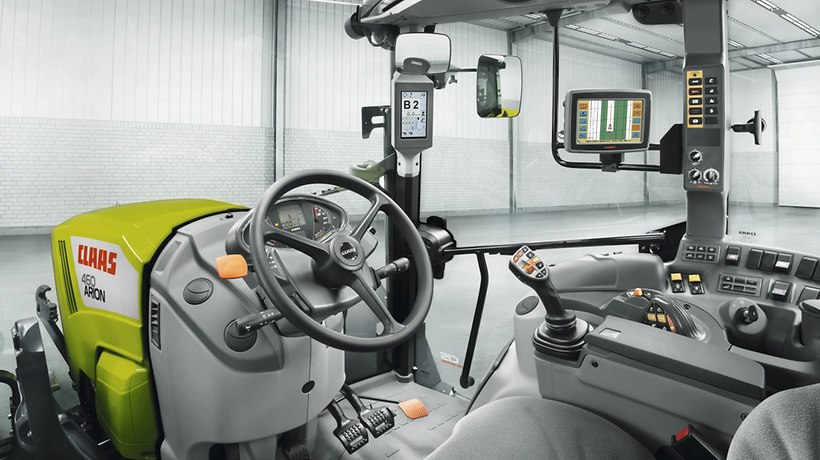

Another newly released option for the ARION 400 model range is the proven CSM headland management system (CLAAS SEQUENCE MANAGEMENT), which is available with CIS colour display. Several tractor functions can be saved as operating sequences with this system, such as electronic control units, power lift, engine rpm and p.t.o. shaft. The operation is very simple and relieves the workload on the driver, especially when it comes to complex driving manoeuvres, which usually require numerous operating steps. A total of 4 headland sequences with up to 200 steps can be saved, which can be activated using the CSM operating panel in the right side console or the multifunction lever.

A steering system that thinks for you

Even the newly developed dynamic steering system provides relief for many tractor operations, as it allows the driver to change the number of steering wheel rotations for the same steering lock angle at the touch of a button and thus adapt it to the specific task. From stop to stop, the number of steering wheel rotations can be reduced from 4.5 when deactivated, to only one to three rotations. This makes handling significantly easier, especially with steering-intensive work such as when using a front-loader or at a headland.

The driver can choose between three different modes for dynamic steering using the CIS colour display. Approximately 90 per cent of all work can be executed with a steering angle dependent mode, where the steering automatically accelerates the stronger the turn. In the speed-dependent mode, the steering transmission is automatically reduced as the tractor speed increases above 10 km/h. Using the third mode, the steering transmission is manually adjusted independent of the speed or steering angle lock. The activation of the dynamic steering system is quick and easy via a button in the right side console.

Everything under control with TELEMATICS

The CLAAS TELEMATICS system is another valuable feature present in CLAAS high-horsepower tractors and harvesting machines that is now available for ARION 400 tractors. TELEMATICS records all the central machine data and positions for each application. Ongoing work can be monitored and optimised via remote diagnostics. Another advantage is the automatic, field-by-field documentation of all data, which can be exported directly into a field record. It is also possible to compare all machine applications over longer periods and to further optimise all tractor work using the data history.
